  • S.S. (316) Ball Valve 2pc Full Port w/Red Handle 1000WOG

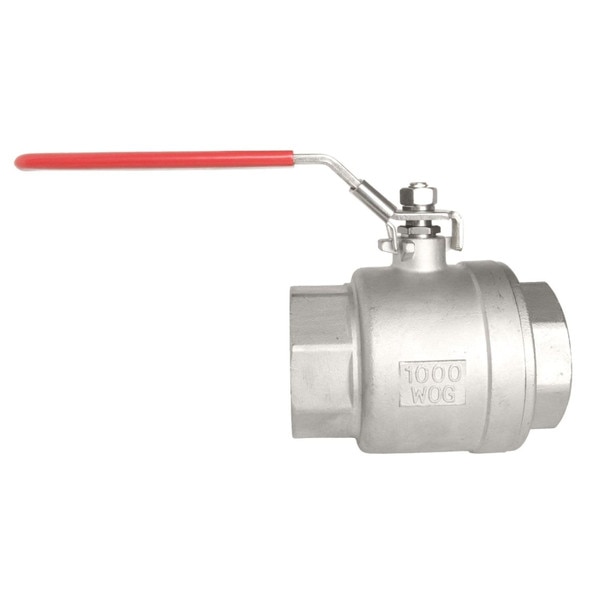

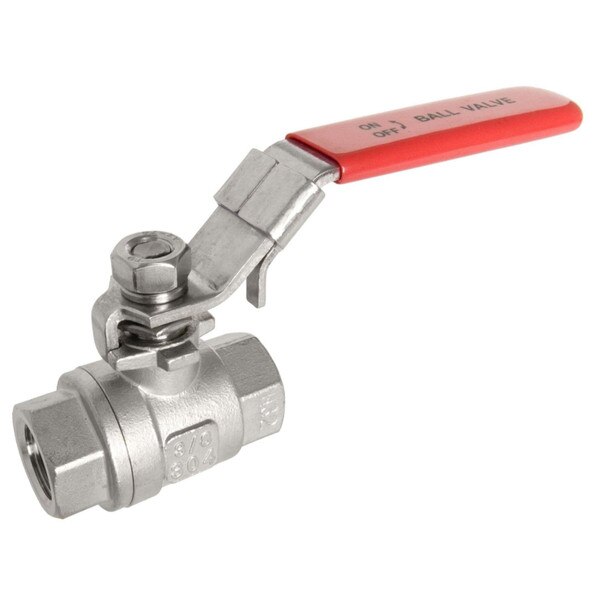

S.S. (316) Ball Valve 2pc Full Port w/Red Handle 1000WOG

SKU: VBS02G

Manufacturer: DuraChoice

Stainless Steel Ball Valve (SS316) - 2 Piece Full Port w/ Red Handle, 1,000 WOG

• Two-Piece Investment cast body S.S. 316 Â

    • Working Pressure 1,000 PSI (WOG) Â
      • Minimal pressure drop due to large full size ports Â
        • Suitable for full range of liquids and gas Â
          • Temperature range : -40 to 400 degree Fahrenheit Â
            • Low operation torque Â
              • 100% individually tested Â
                • Blowout-proof stem Â

                  S.S. (316) Ball Valve 2pc Full Port w/Red Handle 1000WOG

                  Manufacturer: DuraChoice

                  • VBS02G-025 1/4" Stainless Steel (316) Ball Valve - 2pc Full Port w/Red Handle, 1000WOG
                  • VBS02G-038 3/8" Stainless Steel (316) Ball Valve - 2pc Full Port w/Red Handle, 1000WOG
                  • VBS02G-050 1/2" Stainless Steel (316) Ball Valve - 2pc Full Port w/Red Handle, 1000WOG
                  • VBS02G-075 3/4" Stainless Steel (316) Ball Valve - 2pc Full Port w/Red Handle, 1000WOG
                  • VBS02G-100 1" Stainless Steel (316) Ball Valve - 2pc Full Port w/Red Handle, 1000WOG
                  • VBS02G-125 1-1/4" Stainless Steel (316) Ball Valve - 2pc Full Port w/Red Handle, 1000WOG
                  • VBS02G-150 1-1/2" Stainless Steel (316) Ball Valve - 2pc Full Port w/Red Handle, 1000WOG
                  • VBS02G-200 2" Stainless Steel (316) Ball Valve - 2pc Full Port w/Red Handle, 1000WOG
                  • VBS02G-400 4" S.S. Ball Valve 2pc Full Port w/Red Handle Low Stock - Chat or Call to check
                  Items:0  |  Total:$0.00

                  DESCRIPTION

                  This is the unbranded version of one of the most popular stainless steel 316 valves that we offer. This no-logo version of the DuraChoice full port, two-piece design (VBS02)Â offers maximum flow to reduce cavitation. This valve works well in virtually all applications up to 1,000 PSI.Â

                  Â Â
                  • Two-Piece Investment cast body S.S. 316 Â
                  • Working Pressure 1,000 PSI (WOG) Â
                  • Minimal pressure drop due to large full size ports Â
                  • Suitable for full range of liquids and gas  Â
                  • Temperature range : -40 to 400 degree Fahrenheit Â
                  • Low operation torque Â
                  • 100% individually tested  Â
                  • Blowout-proof stem Â
                  • FxF NPTÂ Threaded ends to ANSI B1.20.1 Â
                  • Heavy duty locking handles with red vinyl insulator

                  Â Â
