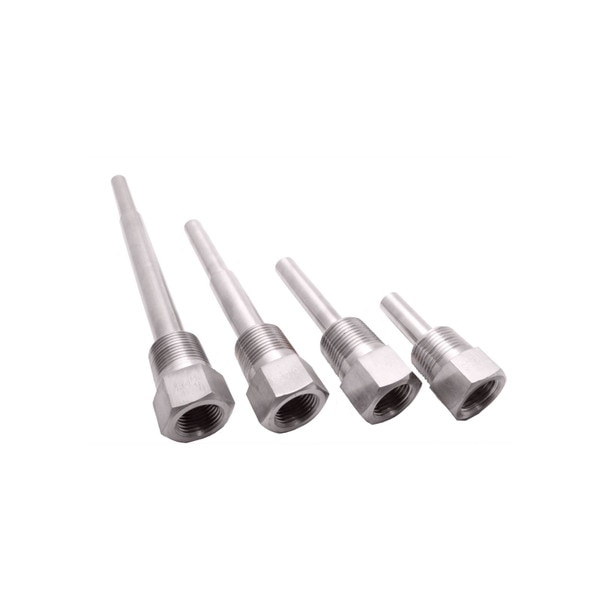

Heavy Duty Thermowell F-1/2" NPT X M-3/4" NPT
SKU: TW603H
Manufacturer: DuraChoice

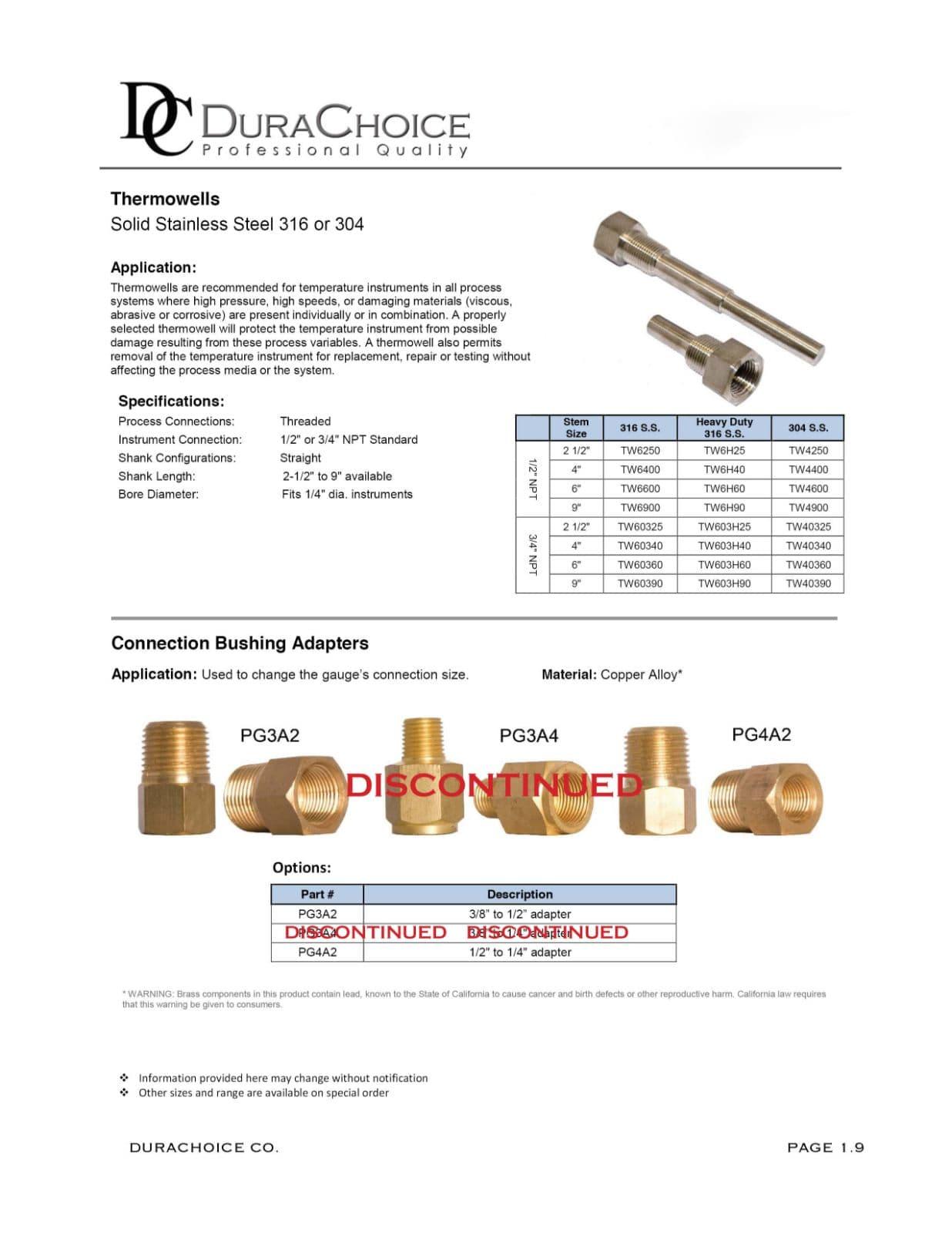

Thermowells (Solid Stainless Steel 316 or 304)
- Process Connections: Threaded
- Instrument Connection: 1/2" or 3/4" NPT Standard
- Shank Configurations: Straight
- Shank Length: 2-1/2" to 9" available
- Bore Diameter: Fits 1/4" dia. instruments
- Pressure Ratings:
- 6,450PSI @ 70F
- 6,400PSI @ 200F
- 5,270PSI @ 600F
- 5,180PSI @ 800F
- 4,660PSI @ 1,000F
Heavy Duty Thermowell F-1/2" NPT X M-3/4" NPT
Manufacturer: DuraChoice
DESCRIPTION
Thermowells are recommended for temperature instruments in all process systems where high pressure, high speeds, or damaging materials (viscous, abrasive or corrosive) are present individually or in combination. A properly selected thermowell will protect the temperature instrument from possible damage resulting from these process variables. A thermowell also permits removal of the temperature instrument for replacement, repair or testing without affecting the process media or the system.
