  • Carbon Steel (316) Needle Valves - 10,000 PSI

Carbon Steel (316) Needle Valves - 10,000 PSI

SKU: VNC

Manufacturer: DuraChoice

2 Reviews

Size from 1/4" to 1", Working Pressure 10,000 psi, ISO 9001 Manufacturer

10,000 PSI at -65 to 100F

Bubble-tight metal-to-metal seat for positive shut off

2 piece non-rotating hardened (17 -4PH) tip for first time seal and long service life

Pressure responsive multi-ring/piston packing for compression and pressure dynamic sealing

Metal-to-metal body bonnet seal for high pressure and high temperature sealing

Unique bonnet locking cam. No accidental removal of head unit, or loosening due to vibration

Backing sealing stem to extend packing life

NPT threaded

100% Hydrostatic testing

Carbon Steel (316) Needle Valves - 10,000 PSI

Manufacturer: DuraChoice

  • VNC01-025 1/4" Carbon Steel Needle Valve - Packed Bonnet FxF NPT, 10,000PSI
  • VNC01-050 1/2" Carbon Steel Needle Valve - Packed Bonnet FxF NPT, 10,000PSI
  • VNC01-075 3/4" Carbon Steel Needle Valve - Packed Bonnet FxF NPT, 10,000PSI
  • VNC01-100 1" Carbon Steel Needle Valve - Packed Bonnet FxF NPT, 10,000PSI
  • VNC02-025 1/4" Carbon Steel Needle Valve - Packed Bonnet Male to Female NPT, 10,000PSI
  • VNC02-050 1/2" Carbon Steel Needle Valve - Packed Bonnet Male to Female NPT, 10,000PSI
  • VNCA2-025 1/4" Angle Carbon Steel Needle Valve - O-ring Seal FxM NPT, 10,000 PSI Low Stock - Chat or Call to check
  • VNC01-038 3/8" Carbon Steel Needle Valve - Packed Bonnet FxF NPT, 10,000PSI
  • VNC02-038 3/8" Carbon Steel Needle Valve - Packed Bonnet Male to Female NPT, 10,000PSI
Items:0  |  Total:$0.00

DESCRIPTION

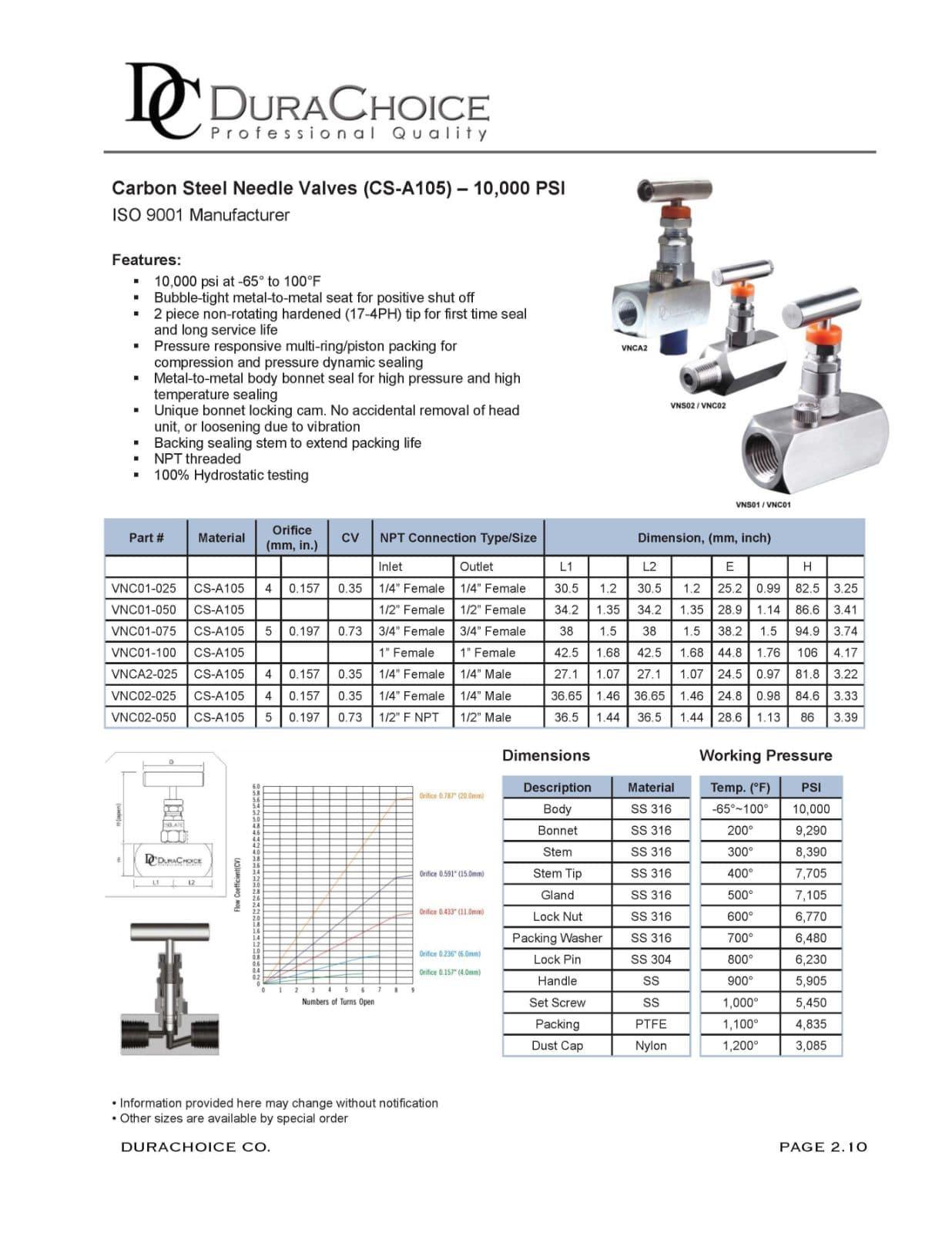

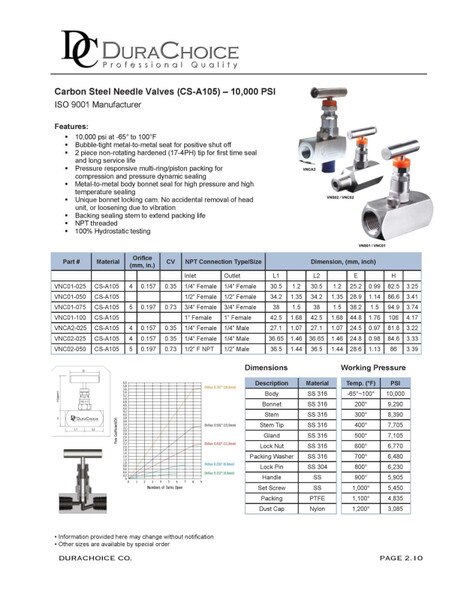

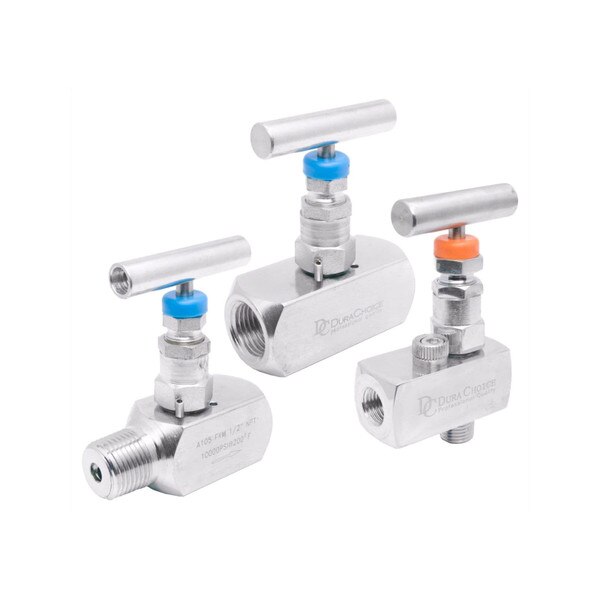

Rated at 10,000 psi, DuraChoice's Carbon Steel Needle Valves are engineered for great performance and long life. Available in FxF, MxF and 90-Degree MxF, all are made according to ISO 9001 standards.

  • Bubble-tight metal-to-metal seat for positive shut off
  • 2 piece non-rotating hardened (17-4PH) tip for first time seal and long service life
  • Pressure responsive multi-ring/piston packing for compression and pressure dynamic sealing
  • Metal-to-metal body bonnet seal for high pressure and high temperature sealing
  • Unique bonnet locking cam. No accidental removal of head unit, or loosening due to vibration
  • Backing sealing stem to extend packing life
  • NPT threaded
  • 100% Hydrostatic testing

DescriptionMaterial
BodyCS A105
BonnetCS A105
StemCS A105
Stem TipCS A105
Packing WasherCS A105
Lock NutCS A105
GlandCS A105
Lock PinCS A105
HandleStainless Steel
Set ScrewStainless Steel
PackingPTFE
Dust CapNylon
