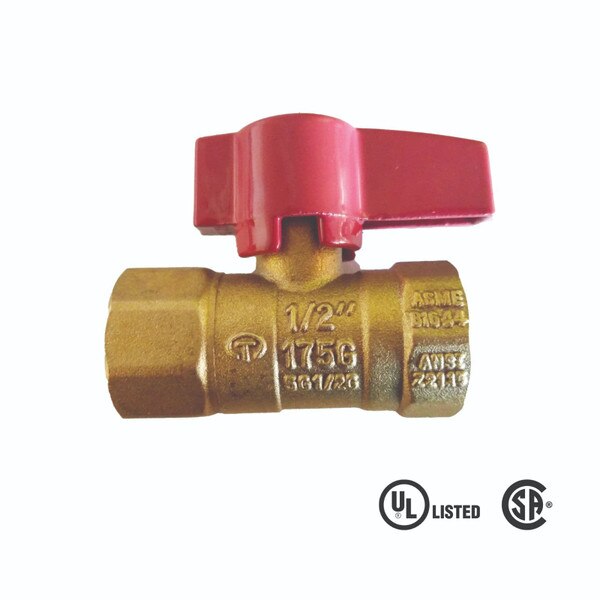

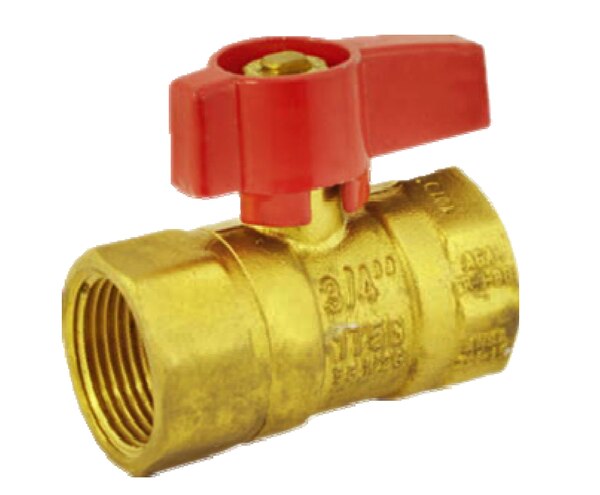

Gas Ball Valve - UL Listed, CSA, Female by Female
Manufacturer: DuraChoice
Brass Gas Ball Valve - UL Listed, CSA, Female by Female
Features
• NPT Threaded ends (ANSI B1.20.1)
• Construction: Forging Brass Body
• PTFE Ball Seats
• Blow Out Proof Brass Stem
• Packing Nut
• O-RING & PTFE Seal On The Seal
Performance Rating
• 600 PSI (WOG) 175 PSI (GAS) Service
• Temperature Range: -4 to 149 Degrees F
Gas Ball Valve - UL Listed, CSA, Female by Female
Manufacturer: DuraChoice
DESCRIPTION
FEATURES
- Thread conform ANSI B1.20.1
- Construction:Forging Brass Body
- PTFE Ball Seats
- Blow Out Proof Brass Stem
- Packing Nut，O-RING & PTFE Seal On The Seal
Performance Rating
- 600 PSI (WOG) 175 PSI (GAS) Service
- Temperature Range: -4° F to 149° F
APPROVALS
CSA:
●3/8"-1" per ANSI Z21.15/CSA 9.1 for 1/2 psig
● 3/8"-1" per ASME B16.44 /CR91-001 for 5 psig
●3/8"-1" per ASME B16.33 /CGA3.16 for 125 psig
UL:
● 3/8"-3/4" UL 125 (Guide YSDT )125psig
MATERIAL
Name | Material |
Ball Valve Body | Brass |
Sealing Washer | PTFE |
Ball | Chrome Plated Brass |
O-Ring | NBR |
Packing Nut | Brass |
Stem | Brass |
Handle Nut | Ferrum/ Plated Copper |
Ball Packing | PTFE |
Handle | Al alloy |
Ball Valve Cap | Brass |

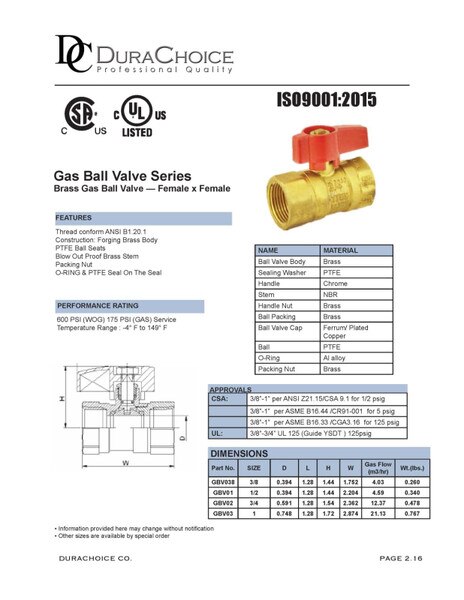

DIMENSIONS
Part No. | SIZE | D | L | H | W | Gas Flow(m3/hr) | Wt.(lbs.) |
VBBXGB-038 | 3/8 | 0.394 | 1.28 | 1.44 | 1.752 | 4.03 | 0.260 |
VBBXGB-050 | 1/2 | 0.394 | 1.28 | 1.44 | 2.204 | 4.59 | 0.340 |
VBBXGB-075 | 3/4 | 0.591 | 1.28 | 1.54 | 2.362 | 12.37 | 0.478 |
VBBXGB-100 | 1 | 0.748 | 1.28 | 1.72 | 2.874 | 21.13 | 0.767 |
