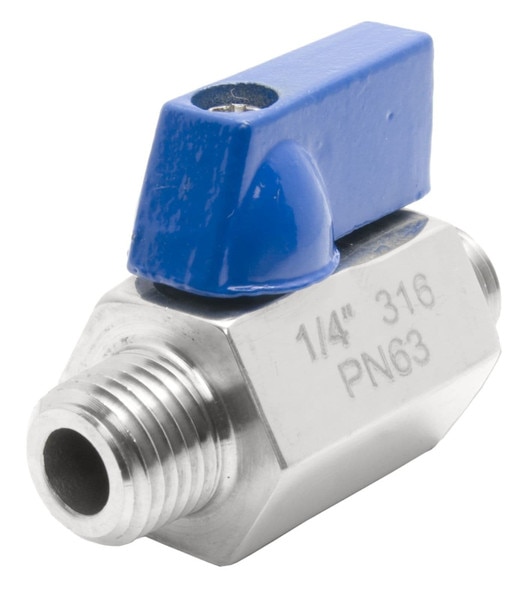

Stainless Steel (316) Mini Ball Valve - MxM NPT
SKU: VBSM3
Manufacturer: DuraChoice
Stainless Steel Mini Ball Valves
Size 1/4" to 1", Working Pressure 1,000 PSI (WOG), ISO 9001 Manufacturer
SS 316 (CF8M) body and ball - for extra strength and corrosion resistance
Working pressure 1,000 PSI (WOG)
Double seal system allows flow can go in either direction
Heavy duty Zinc Alloy handles (painted blue)
Fast 1/4 turn open or closed operation
Each valve individually tested for maximum safety
Stainless Steel (316) Mini Ball Valve - MxM NPT
Manufacturer: DuraChoice
DESCRIPTION
Stainless Steel Mini Ball Valves (or miniature ball valves) are made for use in confined spaces. With a pressure rating of 1,000 PSI (water, oil or gas) and made out of SS 316, this line of valves outshines the rest of the mini ball valves available on this site.
SS 316 (CF8M) body and ball - for extra strength and corrosion resistance
Working on pressure of 1,000 PSI (WOG)
Double seal system allows for flow can go in either direction
Heavy duty Zinc Alloy handles (painted blue)
Fast 1/4 turn open or closed operation
Each valve individually tested for maximum safety
Designation - Material
Body - SS 316 (CF8M)
Ball - SS 316 (CF8M)
Bonnet - SS 316 (CF8M)
Ball Seat - RPTFE
Valve Stem - SS 304/ SS 316
Screw - SS 304
Lever - Aluminum Alloy
O-Ring - NBR/Viton
California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
