  • 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount Connection

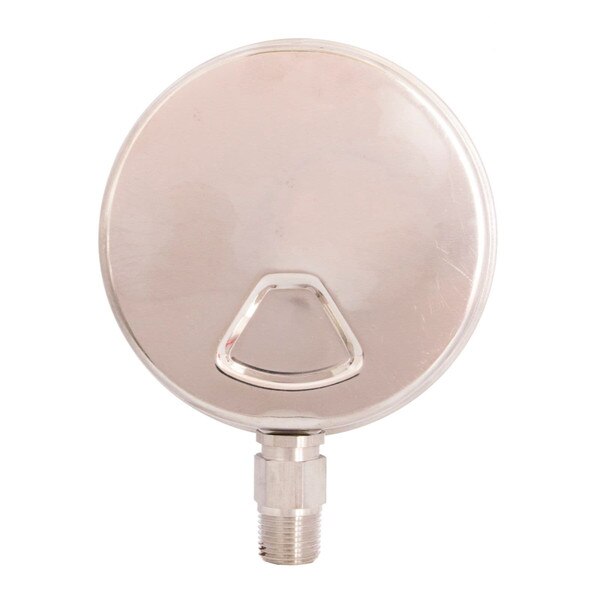

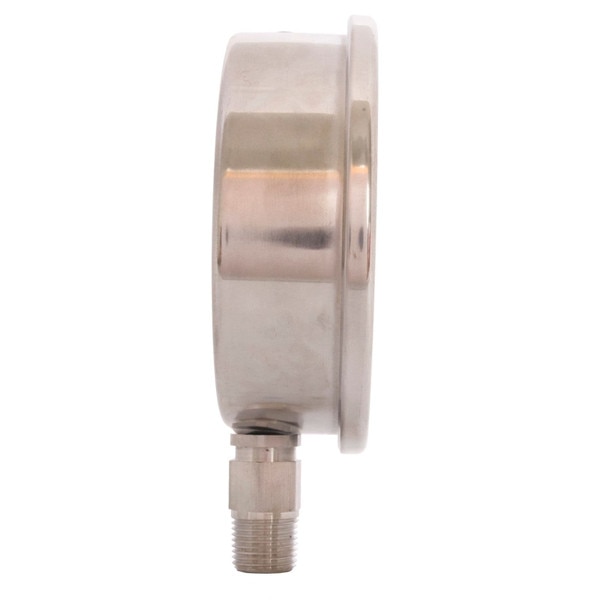

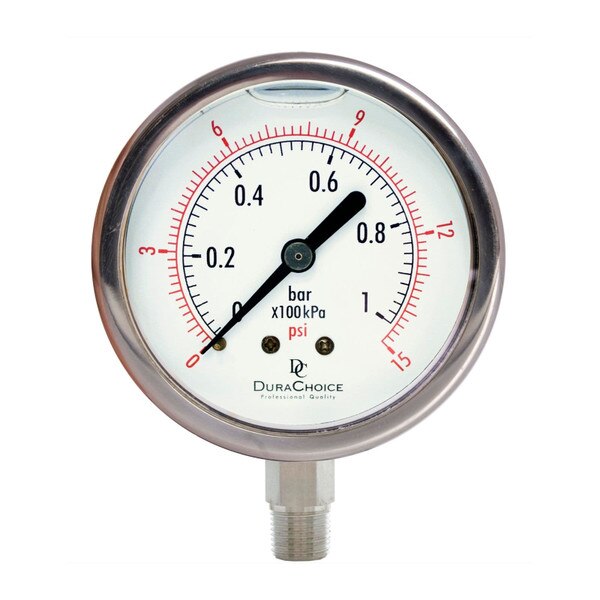

4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount Connection

SKU: PS403L

Manufacturer: DuraChoice

1 Review

4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount Connection


Dial Size: 2-1/2" or 4" Dial Size (Crimped Casing)
Accuracy: +/- 3/2/3%
Scale: Dual Scale - PSI/BarÂ
Movement: Stainless Steel
Bourdon Tube: Stainless SteelÂ
Window: PolycarbonateÂ
Case: Stainless Steel case for protection in harsh environmentsÂ
Connection: Stainless Steel Lower Mount; 1/4" NPT for 2-1/2" dials, and 1/4" NPT, 3/8" NPT or 1/2" NPT for 4" dials
Normal Ambient Temp: -4F to +140F (-20 to + 60C)
Liquid Filling: Glycerin oil filled to enhance reliability and integrity; helps dampen the effect of vibration and puls(more...)

4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount Connection

Manufacturer: DuraChoice

  • PS403L-015 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 15PSI Low Stock - Chat or Call to check
  • PS403L-030 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 30PSI
  • PS403L-060 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 60PSI
  • PS403L-100 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 100PSI Low Stock - Chat or Call to check
  • PS403L-160 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 160PSI
  • PS403L-200 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 200PSI
  • PS403L-300 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 300PSI
  • PS403L-400 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 400PSI Low Stock - Chat or Call to check
  • PS403L-600 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 600PSI
  • PS403L-K01 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 1,000PSI
  • PS403L-K015 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 1500PSI Low Stock - Chat or Call to check
  • PS403L-K02 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 2,000PSI Low Stock - Chat or Call to check
  • PS403L-K03 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 3,000PSI
  • PS403L-K05 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 5,000PSI
  • PS403L-K06 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 6,000PSI
  • PS403L-K10 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 10,000PSI Low Stock - Chat or Call to check
  • PS403L-K15 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 15,000PSI
  • PS403L-V00 4" All Stainless Steel Oil Filled Vacuum Pressure Gauge - 3/8" NPT Lower Mount, -30HG/0PSI
  • PS403L-V15 4" All Stainless Steel Oil Filled Vacuum Pressure Gauge - 3/8" NPT Lower Mount, -30HG/15PSI Low Stock - Chat or Call to check
  • PS403L-500 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 500PSI
  • PS403L-K04 4" All Stainless Steel Oil Filled Pressure Gauge - 3/8" NPT Lower Mount 4,000PSI Low Stock - Chat or Call to check
Items:0  |  Total:$0.00

DESCRIPTION

All of our all stainless steel 4" liquid filled pressure gauges provide great corrosion resistance. This model features a 3/8" NPT stainless steel lower mount connection, bourdon tube and movement.

Its case is stainless steel and filled with glycerin oil to help correct the effects of vibration and pulsation. Pressure ranges available from vacuum to 15000 PSI are good for water, oil, gas or diesel. IP66 Rating.

Dial Size:4" Dial Size (Crimped Casing)
Accuracy:4" Dial Size +/- 2/1/2%
