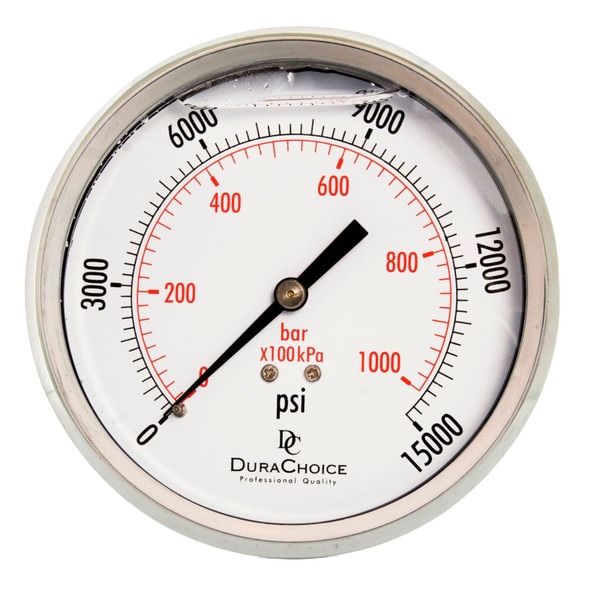

DuraChoice all stainless steel 4" liquid filled pressure gauges provide great corrosion resistance. This model features a 1/4" NPT stainless steel center back mount connection, bourdon tube, and movement. It is cased in stainless steel and filled with glycerin oil to help dampen the effects of vibration and pulsation.

This center back mount mount gauge is available in 15000 PSI. It can measure pressure in water, oil, gas and diesel. IP66 Rating.

Features

• Dial Size:4" Dial Size (Crimped Casing)
• Accuracy:+/- 2/1/2%
• Scale:Dual Scale - PSI / Bar
• Movement:Stainless Steel (304)
• Bourdon Tube:Stainless Steel (304)
• Window: Polycarbonate
• Case: Stainless Steel (304)

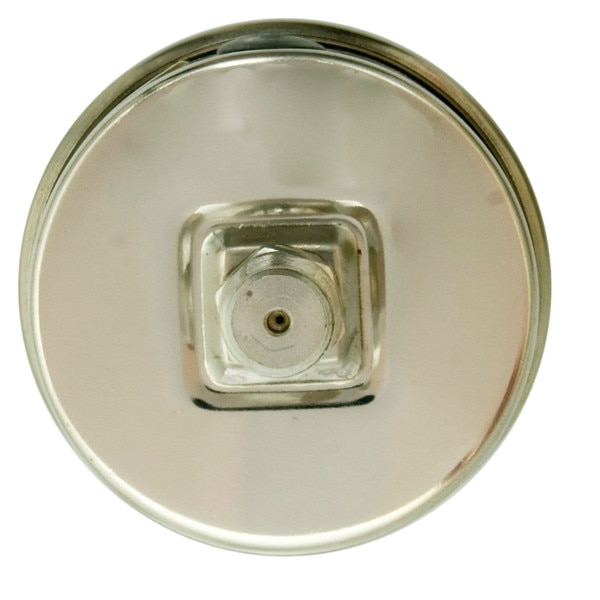

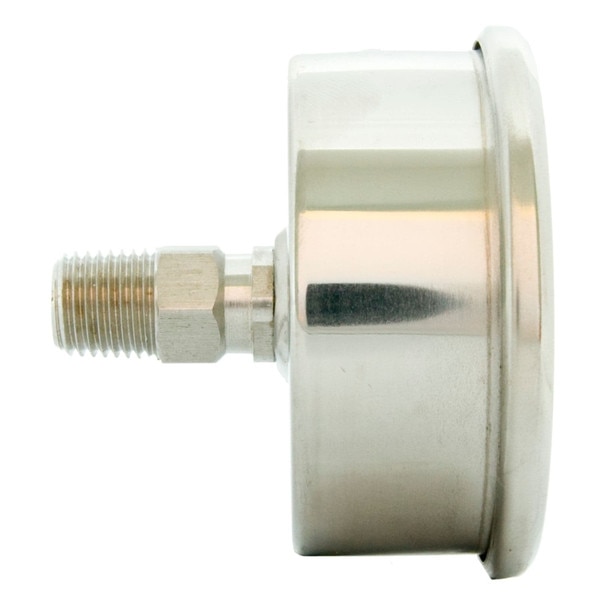

• Connection: Stainless Steel (304) Center Back Mount 1/4" NPT
• Normal Ambient Temp: -4°F to 140°F (-20°C to 60°C)
• Liquid Filling: Glycerin Oil Filled
