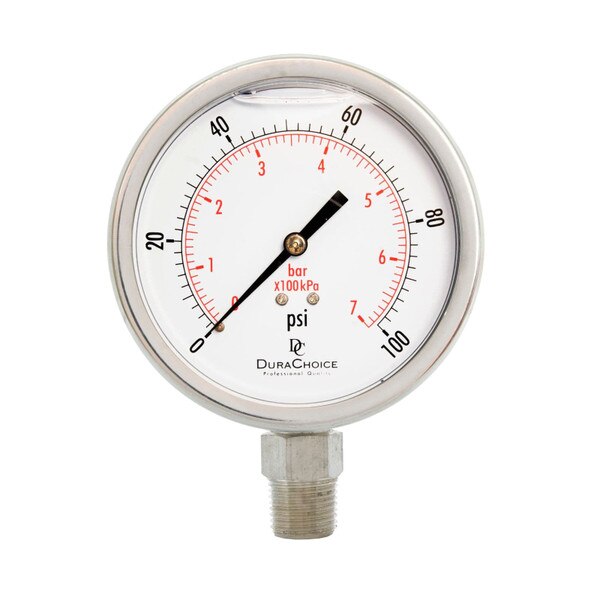

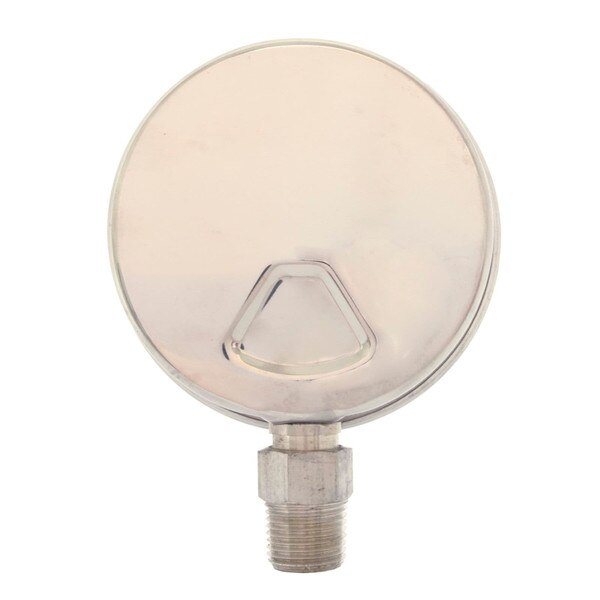

4" All Stainless Steel Liquid Filled Pressure Gauge, 1/2" NPT, Lower Mount Connection
Manufacturer: DuraChoice
4" All Stainless Steel Liquid Filled Pressure Gauge, 1/2" NPT, Lower Mount Connection
Dial Size: 2-1/2" or 4" Dial Size (Crimped Casing)
Accuracy: +/- 3/2/3%
Scale: Dual Scale - PSI/Bar
Movement: Stainless Steel
Bourdon Tube: Stainless Steel
Window: Polycarbonate
Case: Stainless Steel case for protection in harsh environments
Connection: Stainless Steel Lower Mount; 1/4" NPT for 2-1/2" dials
Normal Ambient Temp: -4F to +140F (-20C to +60C)
Liquid Filling: Glycerin oil filled to enhance reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
4" All Stainless Steel Liquid Filled Pressure Gauge, 1/2" NPT, Lower Mount Connection
Manufacturer: DuraChoice
DESCRIPTION
Gauges with pressure ranges from vacuum to 15000 PSI are available and work with water, oil, gas (WOG) or diesel.
Dial Size:4" Dial Size (Crimped Casing)
Accuracy:+/- 2/1/2%
Scale:Dual Scale - PSI / Bar
Movement:Stainless Steel
Bourdon Tube:Stainless Steel
Window:Polycarbonate
Case:Stainless Steel case for protection in harsh environments
Connection:Stainless Steel Lower Mount; 1/2" NPT (for 4" dial)
Normal Ambient Temp.:-4F to +140F (-20C to +60C)
Liquid Filling:Glycerin oil filled to enhance the reliability and integrity;
helps dampen the effect of vibration and pulsation;
lubricates the movement and extends the life of gauge.
Ratings & Reviews
1 review
I discovered that 1/
by Rudy L
I discovered that 1/2" NPT lower mount does not refer to the diameter of the connection but some other thing. The diameter of the connection should be listed with these gauges.
