Our all stainless steel 2 1/2" liquid filled pressure gauges are some of the highest quality gauges on the market. Featuring a 1/4" NPT stainless steel lower mount connection, bourdon tube and movement, they are even more resistant to corrosion than their brass connection counterparts. The gauges are cased in stainless steel and filled with glycerin oil to help correct the effects of vibration and pulsation.


Pressure ranges available from vacuum to 15000 PSI. Good for use with water, oil, gas (WOG) and diesel. IP66 Rating

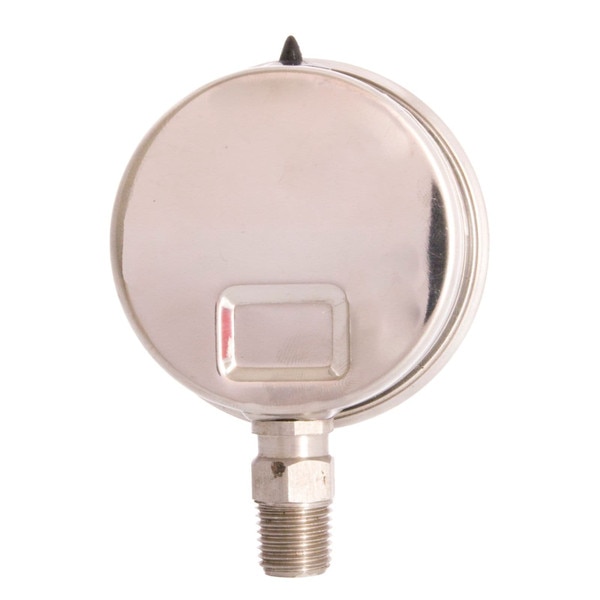

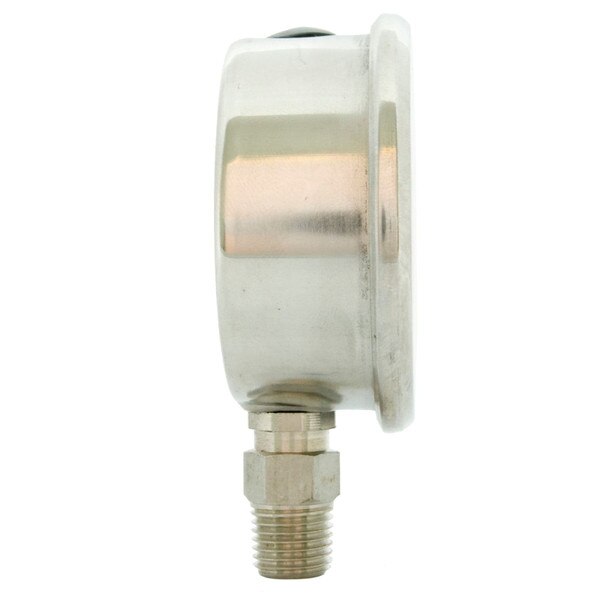

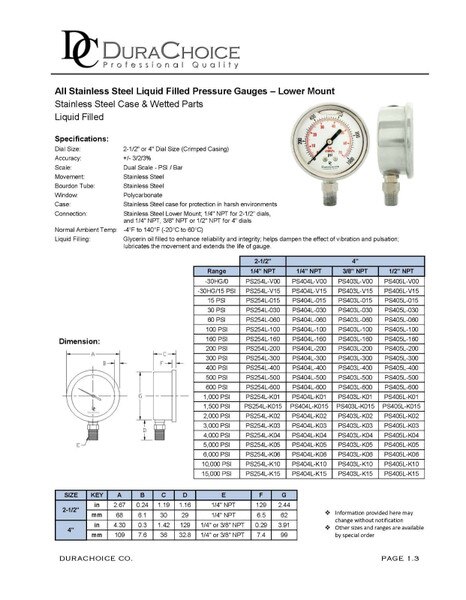

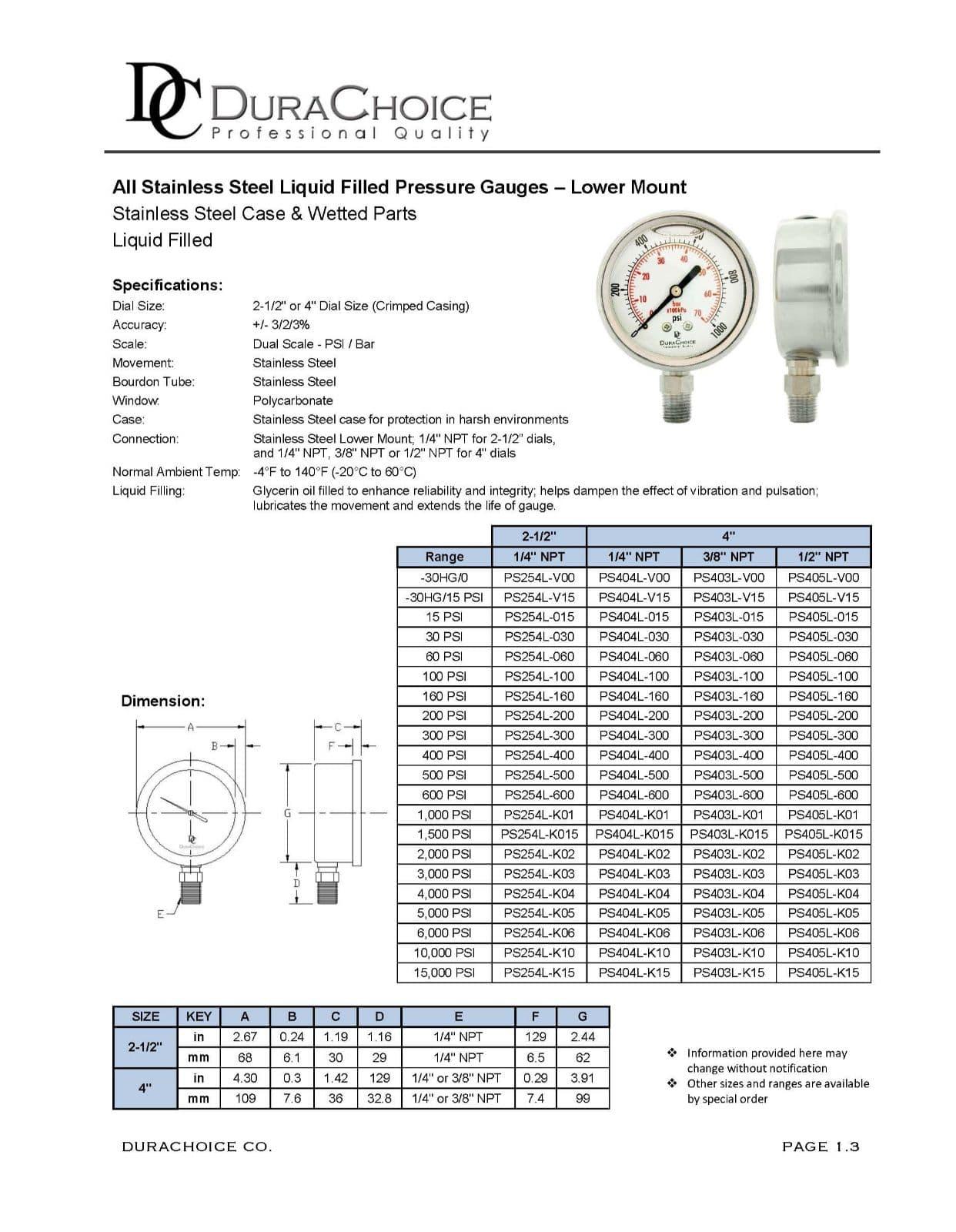

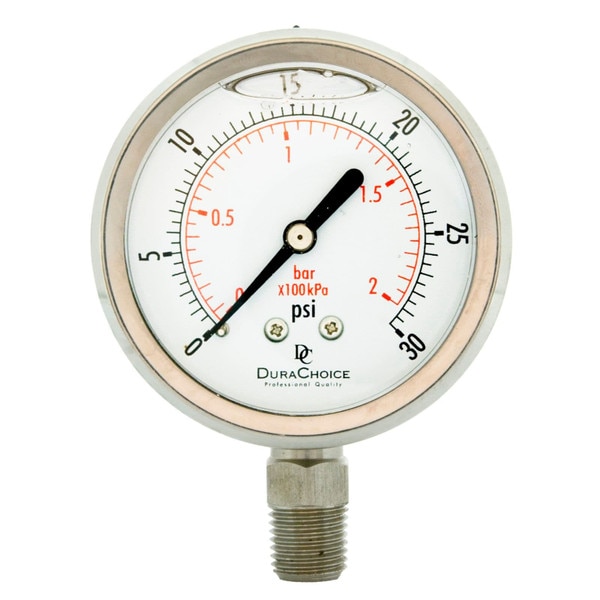

2-1/2" All 304 Stainless Steel Oil Filled Pressure Gauge - ¼" NPT Lower Mount Connection

• Dial Size: 2-1/2" or 4" Dial Size (Crimped Casing)
• Accuracy: +/- 3/2/3%
• Scale: Dual Scale - PSI/Bar
• Movement: Stainless Steel
• Bourdon Tube: Stainless Steel
• Window: Polycarbonate
• Case: Stainless Steel case for protection in harsh environment.
• Connection: Stainless Steel Lower Mount; 1/4" NPT for 2-½" dials, and 1/4" NPT, 3/8" NPT or 1/2" NPT for 4" dials
• Normal Ambient Temp: -4F to +140F (-20C to +60C)
• Liquid Filling: Glycerin oil filled to enhance reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
